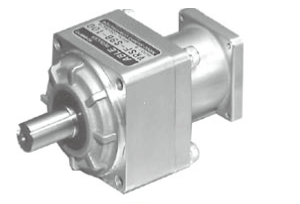

VRSF Series
Specifications
- Ratio available from 1/3 to 1/81.
- Available in 4 Frame sizes B/C/D/E.
- Available in three back-lash precisions (standard, Low backlash & High Precision)
- Output Torque up to 220Nm available.
Features
- Economical & light weight reducer series.
- Easy selection through software (just need motor make and model no.)
- Three back lash options available to suit any applications.
- Long Service Life (The High Class Grease in Able Reducers gives permanent lubrication)
- Easy Mounting (Adaptors available for each model of all brand servo motors)
- Variety of Ratio (1/3 to 1/81).

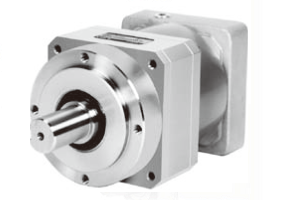

VRL Series
Specifications
- Ratio available from 1/3 to 1/100.
- Frame sizes available from 50mm to 235mm.
- Back-lash - < 5 arc-min
- High Output Torque up to 2200Nm available.
Features
- Easy selection through software (just need motor make and model no.)
- Quite Operation (Helical gears contribute to reduced noise and vibration)
- Firm Body (Internal teeth are machined to the steel body directly to produce high Output torque)
- Long Service Life (The High Class Grease in Able Reducers gives permanent lubrication)
- Easy Mounting (Adaptors available for each model of all brand servo motors)
- Variety of Ratio (1/3 to 1/100).
